Building Components

Zamil Steel Buildings Vietnam Co., Ltd also launched our Component Sales to the market with the purpose to help customers to have more options of accessories for their new steel buildings and replacement of the old ones.

The components are designed and fabricated in accordance with Zamil Steel standards, with high quality, good appearance, durability, and diversification.

The list of available components is mentioned below for your reference.

Contact any of our sales offices for technical advice and to order at your convenience.

List of our available components:

Tempcon® Panel by Zamil with standard colors
Building Components& Accessories
MaxSEAM® panel for new roof and re-roofing
Panel type “S” 0.5mm thick with five standard colors
Curved Panel with profile type “S”
Ridge Ventilator package and all accessories
Sliding Door and accessories
Roll-up Door
Personnel Door: Single, Double, and Pilot
Aluminum Window
Steel Louver
Steel Gutter, Downspout and its accessories
Decking Panel type “K”
Building Components & Accessories
Cold-Formed Section: Purlin, Girt, Base and Gable Angle

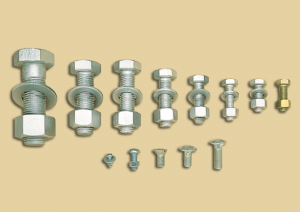

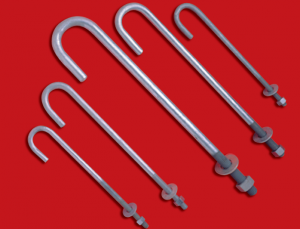

Connection Bolt, Nut, Washer and Galvanized Anchor Bolt
Galvanized Sag Rod
Fastener/Pop Rivet for roof and wall

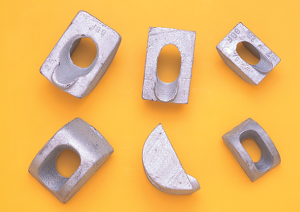

Bracing Components: Rod, Hillside and Coupling Washer
Angles/Clips/Plates: for universal purposes
Foam closure for type “S” panel
Foam Gasket for modified panel profile
PVC Pipe and Accessories
Stainless Steel Roof Curb for roof
Sealant for roof and wall panels: Flowable Mastic, Bead Mastic
Insulation and Accessories
Paint/Touch-up paint for main frames and panels
Building Components & Accessories
Trims as per Standard and Customer’s Profile
Identical building/identified member of built-up
Power Ventilator
Bird Screen/Insect Screen; Stainless Steel Wire Mesh
Pipe Flashing

References

Download now our Building Components brochures

Product Glossary

A - B

Technical Terms	Description
Accessory	A supplementary building product, such as a door, window, skylight, ventilator, louver, etc.
Anchor Bolt	Bolts used to anchor structural members to a concrete floor, foundation or other support. Usually refers to the bolts at the bottom of all columns and door jambs.
Angle	A hot rolled member with two legs forming a 90 degree angle.
Approval Drawings	Drawings sent to the customer to verify design and dimensions and to verify the sales contract description of materials and services the manufacturer has agreed to furnish.
Astragal	A bent plate attached to one leaf of double sliding or hinged doors to prevent dust and light ingress
Back-up Plate	Additional plates used in connections to provide sufficient bolt grip, allow for erection tolerances, or increase strength.
Base Angle	A continuous angle fixed to the floor slab or to the grade beam to enable the attachment of wall panels.
Bay	The space between the center lines of frames or primary supporting members in the longitudinal direction of the building. Also called Bay Spacing or Bay Length.
Bead Mastic	A sealant furnished in a continuous roll, normally used for sealing end laps of roof panels. See also Endlap Mastic.
Beam	A horizontal structural member designed primarily to resist moments
Bill Of Materials	A list of items or components used for fabrication, shipping, receiving, and accounting purposes
Bracket	A structural support projecting from a column or rafter to which another structural member is fastened. Example: Brackets supporting crane runway beams
Builder	A general contractor or sub-contractor responsible for providing and erecting pre-engineered buildings
Building Code	Regulations developed by recognized agencies establishing minimum building requirements for licensing, safety and functionality purposes such as setbacks, fire regulations, spacing and clearances. Building codes usually address acceptable design codes. An example of a building code is the Uniform Building Code (UBC)
Built-Up Section	A structural member, usually an “I” shape, made from individual flat plates welded together

C - D - E

Technical Terms	Description
C Section	A member formed into a “C” shaped profile by cold roll-forming from coils
Cables	Used for cable bracing. Can also be used to operate ridge vent dampers and for temporary bracing
Canopy	An overhanging or projecting roof structure, below the eave level, supported at one end only
Catwalk	A narrow walkway used to provide access to mechanical equipment normally supported on roof platforms
Channel ( Hot Rolled)	A member formed, while in a semi-molten state at the steel mill, into a “C” shaped profile having standard dimensions and properties specified by a relevant standard specification
Clear Height	The vertical dimension from the finished floor level to the lowest underside point of the rafter
Clear Span Building	A building without internal columns
Clip	A plate or angle used to fasten two or more members together
Closure Trip (Foam Closure)	Purpose-made foam fillers to fit inside and outside profiles of roof and wall panels providing a weather-tight seal
Cold – Formed Member	A light gauge structural member produced from coiled steel stock running through a series of rolls at normal room temperatures
Damper	Baffle plate in a ridge ventilator that can be opened or closed using the cable catch assembly
Dead Load	The self weight of the pre-engineered building structure including all its components such as frames, floors, secondary members, sheeting, bolts, etc.
Design Codes	Regulations developed by recognized agencies establishing design loads, procedures, and construction details for structures. Examples are: MBMA, AISC, AISI, AWS, etc.
Double Channel	Regulations developed by recognized agencies establishing design loads, procedures, and construction details for structures. Examples are: MBMA, AISC, AISI, AWS, etc
Downspout	Cold-formed sheet metal section used to carry water from the gutter of a building to the ground or storm drainage system
Eave	A line along the sidewall formed by the intersection of the inside faces or planes of the roof and the sidewall panels
Eave Gutter	Gutter at the eave of a building
End Lap	A term used to describe the lap at a purlin location where the end of one panel overlaps the end of the panel below it
End Wall	A term used to describe the entire composition of a building end
Erection	The on site assembling of pre-fabricated components to form the complete structure

F - G - H

Technical Terms	Description
Fabrication	The on site assembling of pre-fabricated components to form the complete structure
Flowable Mastic	Supplied in a nozzled cartridge. Used to seal overlapping flashing, gutter joints, etc.
Framing	Primary and secondary members (columns, rafters, girts, purlins, brace cables, etc.) which when connected together make up the skeleton of a structure to which the covering can be fastened.
Gable	The triangular portion of the endwall of a building directly under the sloping roof and above the eave height line
Gable Trim	A flashing designed to close the opening between the roof panels and endwall panels
Galvanized	Steel coated with a layer of zinc for corrosion resistance
Gauge	The distance between holes along the transverse axis of a plate
Girt	Secondary horizontal member attached to the main frame columns. Girts normally support wall panels
H Section	A steel member with an “H” cross section
Hangar Door	A large multi-leaf door that is used in aircraft hangars or similar buildings
Hillside Washer	A washer having non-parallel faces normally used on brace cables or rods. Also known as Bevel Washer.
Hot Rolled Shapes	Steel sections (angles, channels, I-sections, etc.) which are formed, while in a semi-molten state at the steel mill, into a shape having standard dimensions and properties specified by relevant standard specifications.
